Although it hasn’t gained any support at all among regional decisionmakers, a longtime favorite in the STB commentariat has been the “peanut butter” plan. It would build rail and bus tunnels where surface buses are hopeless, namely the Ballard/UW corridor and in downtown Seattle, and try to address the worst bus bottlenecks on Elliott Avenue and West Seattle, where Sound Transit 3 will build light rail. It’s a great plan for which I wouldn’t hesitate to vote.

This plan would undoubtedly serve more areas of Seattle than the existing ST3 proposal, although it would do so with buses somewhat less reliable than light rail. Whether that tradeoff is worth it is comprehensively addressed in dueling articles by Ross Bleakney and me, and readers can read those and draw their own conclusions.

Though the ST3 decision process is over, peanut-butter advocates might comfort themselves with the idea that ST3 failure might result in a smaller retry, where a cheaper BRT-heavy option is the only alternative. Unfortunately, the latest cost estimates suggest that the peanut-butter plan is actually more expensive than the existing ST3 plan, unless Sound Transit strips out the features that give it the advantage of geographic breadth.

Throughout this article, I will use high-end cost estimates, as is my custom, and 2014 dollars because all corridor studies use them.

The ST3 package will spend a total of $5.833 billion to get from Ballard to West Seattle, of which $1.752 billion is the tunnel from International District/Chinatown to Denny St. Some fraction of the $2.550 billion to finish the line to Ballard will complete the tunnel from Denny to Lower Queen Anne, but ST doesn’t have a readily available figure for the portal-to-portal costs combined from the two segments. There is also $65m for Rapid Ride and Madison BRT that the peanut butter plan might arguably address, so make the total $5.9 billion.

As the name implies, the peanut butter plan is a series of somewhat smaller projects. The easiest to estimate is a Ballard/UW tunnel, which would cost $1.9 billion for a 3-station line. Seattle Subway, among the strongest advocates for this line, believe with many Sound Transit critics that there should be at least two additional underground stations. We know from the separate 99/Harrison Station study option that an underground station costs in the area of $367-393m. So if you would like a proper Ballard/UW line, we’ll charitably charge that as a further $400m, for a total cost of $2.3 billion.

The new bus tunnel downtown is much harder to price. To simply replicate the 3.4 mile Sound Transit 3 tunnel (a “D Line tunnel”) is probably roughly the same cost as the rail version. I estimate that the tunnel from Chinatown to the Lower Queen Anne as about $3 billion.* The original, 3.5-mile branched concept has better service for Belltown and Aurora buses, and worse to South Lake Union. It also has the same number of total stations, so I’ll once again be charitable and assign it the same cost.**

At this point, our high-quality Ballard/UW + bus tunnel concept is $500m short of the actual ST3 proposal. And we haven’t even gotten to West Seattle, aside from benefits from the bus tunnel. Frank’s post comes up with a total of $1.9 billion to do a good job in the Delridge and West Seattle Junction corridors. Interestingly, that’s more than the total cost of finishing the same light rail segment, though with more geographic scope.

Segment Sound Transit 3 Peanut Butter Plan
Ballard $1.3 billion $2.3 billion
Downtown $3 billion $3 billion?
West Seattle $1.5 billion $1.9 billion
Total $5.8 billion $7.2 billion

So the pure peanut-butter plan, using our new estimates, is about $7.2 billion. This is $1.4 billion over the actual Ballard/West Seattle project cost, and about $1.2 billion over the total subarea budget (not counting SR522 BRT). Given that the existing strain on the subarea budget required a 25-year timeline, the question becomes what to cut. There are lots of choices: the infill stations at 130th and Graham St, the two extra stations between Ballard/UW (an irreversible decision!), applying standard “BRT creep” methods to service for West Seattle, or likely some combination of the above.

And now that the ST3 decision is made, the budget vise is even tighter. Given likely interpretations of a no vote, a future measure is unlikely to exceed $54 billion in Year of Expenditure (YOE) dollars, while the cost of all projects will go up.

****

The peanut butter plan emphasizes different things than the ST3 package, and it’s logically coherent to prefer one to the other regardless of the relative cost. Without fiscal constraints, one might reasonably believe it to be a superior package. As it consists of a series of smaller projects, it’s easier to cut bits and pieces without blowing everything up. On the other hand, cutting those pieces either reduces the key attraction of the plan — geographic scope — or erodes quality with “BRT creep”, which is the reason many people distrust bus projects in the first place.

Personally, I think the Seattle projects in ST3 are great, and will vote for them enthusiastically. People who think the ST3 projects are actually counterproductive should absolutely vote against the plan, as large projects will crowd out some smaller ones that might make a more positive difference. But anyone who thinks ST3 is pretty good, while inferior to some other grand scheme, should vote yes, because we simply can’t get to other grand schemes from here.

*As I said, Sound Transit doesn’t have a readily available portal-to-portal estimate for the tunnel’s cost, as the Denny-to-LQA tunnel is buried in the Ballard-to-Denny cost. Generating our own estimate is fraught: simply prorating the overall length yields $3.2 billion; prorating the number of stations, $2.6 billion. Alternatively, if the trend holds that the tunnel costs three times more per mile than the rest of the Ballard segment, the algebra works out to $1.2 billion for Denny-LQA and $3 billion total. Given all this noise, I settled on $3 billion.
**For the branched tunnel, there is the same number of stations, but it is 1/10 mile longer. The doomed Battery St. tunnel (0.3 mi) would need substantial work but could save a bit. Branching will add cost and complexity. And for any rail-convertible bus tunnel, there are presumably additional costs to support buses. Your mileage may vary.

107 Replies to “Whatever Its Merits, “Peanut Butter” Doesn’t Save Any Money”

  1. A Ballard-to-UW rail line doesn’t work as a stand-alone. Either you build a separate operations and maintenance facility (where…?) for a dedicated fleet or you build a very expensive underground junction with Northgate Link, to allow access to existing O&M facilities. Difficult to imagine, especially with Northgate Link is in full operation.

    1. Exactly. ST seems to clearly prefer to only build a cross-over at U district, not a junction. That plan needs Ballard-Dr to be completed already.

      1. Is there any indication that ST is preparing U District station for a future crossover or are we going to waste millions of dollars and cause a huge operational headache at some point in the future? Oh who am I kidding, this is ST we’re talking about…

      2. I’ve been asking ST since the first U-District Station open house to plan for a good transfer to a cross platform at this station and tell us how the station will accommodate it, because it will become the highest-volume and most visible transfer in north Seattle in the long term. I’ve mentioned this repeatedly in open houses and in my written feedback to ST. They have never released information on any of it. One staff member said, circa 2013 or 14, that ST couldn’t spend money planning for a transfer to a line that wasn’t voter-approved yet and whose alignment wasn’t certain (he pointed to the Northlake Ave-520 alternative as one that wouldn’t use the station). Ayayay! Where do the highest-volume north-south and east-west bus routes cross in north Seattle? U-District Station!!!

    2. These kind of additions are done all over the world all the time. Linking the two lines is really not that expensive (compared to the rest of the project). Unlike a lot of things, Link has already studied it (as Martin mentioned). The options are discussed here, by the way: https://seattletransitblog.com/2015/03/23/ballard-uw-downtown-link/
      The cheapest option (which would require a transfer to get downtown) would have a facilities only track between the two. I believe Toronto has that, for one of its new lines. I’m sure there are plenty of other examples.

      1. Berlin U-Bshn between the central station and Brandenbeg Gate. I have no idea how they have the maintenance link organized, but otherwise it is an isolated line with a single two car train.

        Chicago has several junctions that are used for occasional short term diversions or maintenance moves.

    3. RD, and Martin, and Ross, looking through these comments by the end of tonight, I think you’ve all got enough technical experience to discuss this understand a problem that could be insurmountable. The ground at the south end of the tunnel is really water with a little dirt in it.

      A map from 1900 clearly shows that Jackson Street was beachfront property for a lagoon.

      We had to “grout”- inject cement- into the ground under Jackson so we could start digging northbound at all. And we also had to closely miss the BN tunnel. Been told trackbed is very short distance above our tubes.

      The staging area on the south end of IDS sits on several dozen sets of three timbers each, I think about a hundred feet long, meeting at the top, with a rectangular concrete pad over every point, pile-driven into the ground.

      So I think all further discussion has to tunnel itself through this ground before we say anything else. This is best example I’ve seen of a route map that has to get promoted from lines and dots to things trains can sink out of sight into without much tremor.

      It’s because I’m so much interested in this approach that I want to be sure it can actually get built. Because to projects like ST-3, time is money with interest.

      Mark Dublin

    4. Further problem is assuming that those north trains will have capacity to absorb riders transferring from a crosstown line. ST is already saying when opened to Lynnwood (and later Everett), Link will be 4-car trains all day every day. By the time they arrive downtown, they will be full (probably overfull) during weekday rush hours. That crosstown line needs to connect up with Ballard Link to serve riders destined to downtown.

  2. Since Forward Thrust, the X shaped network has been envisioned. I can understand the desire to get from UW to Ballard and calling ST’s sticking to this ~60 years old idea maybe outdated, but I also see the advantages and, as a scientist, refuse to believe that every one of of the innumerable studies completed in those 60 years failed in uncovering the supposed superiority of the Ballard – UW line.

    It’ also clear that ST wants to build DT-Ballard first, then turn East and build Ballard – UW (and potentially to Kenmore and Redmond. I also appreciate that Seattle is getting two water crossings out of ST3 rather than just the WS bridge and cramping the capacity on the one tunnel we have. “The North” will head on with a more resilient transit infrastructure.

    Finally, as has been discussed heavily in comments (and on /r/Seattle) ST is begging to plan for running Seattle-only trains on the spine once the busses are out of the tunnel and additional rolling stock arrives (2019 or so)

    Finally finally … Ballard-UW is in this plan. If we find the money (which given the boom, we should), that line is there.

    1. Have we ever gotten any confirmation in writing (the only thing I have seen is an assurance by Seattle Subway from ST) that Ballard to UW would be funded as a provisional?

      For Ballardites who are interested in the short term, if Ballard to UW were built first since it would be quicker to build– and after the efforts (including fighting the NIMBY crowd) for density. (You will hear it on the other blogs, we built all these apartment buildings to have light rail in 17 years?).

      As a Ballardite, I wanted Ballard to UW to be built first in large part because I am still nervous about how tough the ship canal crossing (over or under) will be.

      I will vote for the package, but to me it is “meh” given the cost and timeframes.

      1. Sorry for the unclear second paragraph— I edited the para.without proofing.

        Basically, Ballardites will claim they have done their part to increase density (while it is loved here on this blog, not so much if you ask the locals), and are rewarded with one of the last light rail lines to open (even before W. Seattle). I’m sure there will be some “no” votes because of this. Whereas the Ballard to UW would be quicker to build and open sooner (and we have debated located the OM facilities for the line plenty of times).

      2. For those in Ballard, the best part about Ballard to UW is not that it is cheaper, but that it connects Ballard to more places. A trip from Ballard to downtown via the UW is only a couple minutes slower than going via Interbay. But it connects Ballard to way more places. Not only the places along the way (Fremont, Wallingford and the UW) but also anywhere that Link goes (Northgate, Shoreline, Lynnwood) as well as any place where it makes sense to take North Link (Lake City, Edmonds, Everett). This is because taking Link and “going around” is not worth it. For example, a trip from Northgate to Ballard via Westlake will never make sense (you are better off just using the slow 44).

        This is all very counter-intuitive, because people are used to thinking in terms of driving. You would be nuts to drive to the UW if you wanted to drive from Ballard to downtown. But that exact problem (that driving from Ballard to the UW is very slow) would make the train especially popular. A subway trip would be faster than driving all day long (not just rush hour) which means that transfers (e. g. Greenwood to the UW) are competitive with driving all day long too.

        In short, Ballard to UW is simply a better line (for Ballard if not the entire region) than even the best line that ST3 proposed (Ballard to downtown).

      3. It also connects to Ballard, period. Connecting the Safeway parking lot to downtown is what the current plan accomplishes.

    2. It seems very common for subways to start out as spokes. We see it in Boston, Portland, DC, and other cities. The subway follows the general pattern of a traditional big city commute bringing people from the outer neighborhoods into the job centers. In Seattle the spokes are radiating out to Northgate, SeaTac, Bellevue, West Seattle, etc.

      However, when you look at subways in true metropolises you start to see more of a grid structure. Look at the way subway map for London, New York, Paris, Seoul, etc. and you see many criss crossing subway lines which makes all sorts of travel possible without transferring through the downtown core. Boston has been talking about a circle line for decades which would ring the city and change the spokes into more of a grid.

      We don’t have our spokes yet! Spokes are a reasonable first target for a subway. The Ballard to UW line makes a lot of sense, but it also might make sense to think of it as an ST4 project which will be considered once the spokes into the downtown core are well underway.

      1. But that ignores the geographic realities of Seattle. With an arbitrary city, with density spread out in roughly the same way everywhere, and all the roads being about the same, then building spokes first would make some sense. But that isn’t our city. Not even close.

        West Seattle has a major freeway (which Martin chose to ignore) as well as density and travel patterns that just beg for a bus based solution. While it isn’t so simple with Ballard, the fact is that getting from Ballard to downtown via the UW is only two minutes shorter than getting there via Interbay. So basically, a Ballard to UW line is simply a typical spoke, just a crooked one. Better yet, it is simply a spur. If you look at all of your examples (DC, Boston, Portland) it is pretty typical.

      2. When you talk about spokes there needs to be a hub. The spokes for Seattle are shaped like an X with downtown as the hub where the two strokes intersect. Even if the NW spoke to Ballard is built first, eventually a crosstown line will be needed to relieve congestion from downtown transfers.

      3. Portland?

        MAX green line crosses a bunch of busy bus routes and provides a cross town type of service. It isn’t a direct spoke.

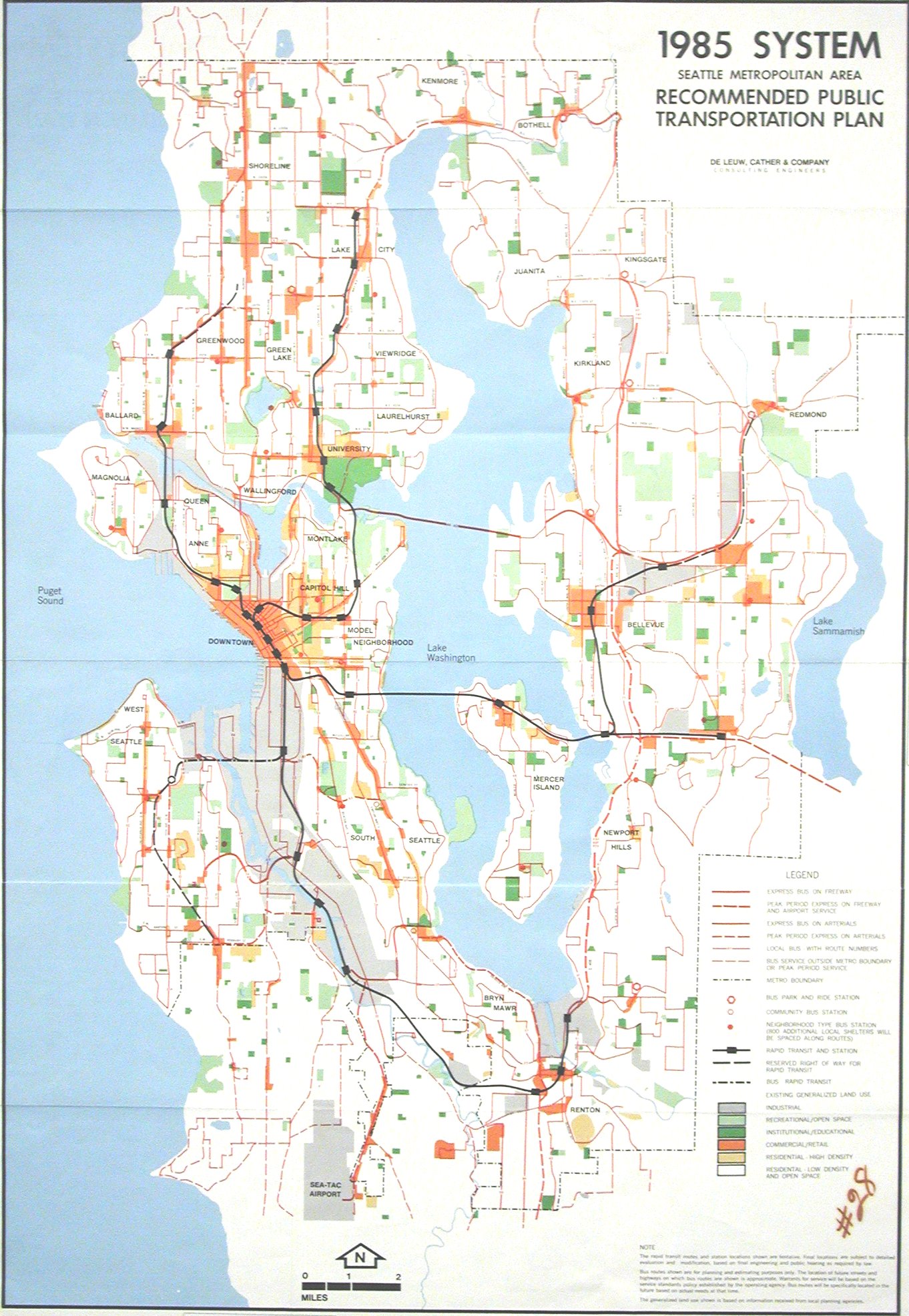

      1. Ross’ map is not from 1985; it’s a view from one of the DeLeuw, Cather and Co. reports done in preparation for the vote(s) and shows the system as it was intended to look when construction was completed in 1985. The one that Chris links to is from the 1970 edition; I believe Ross’ is for the 1968 vote (if I recall correctly from reading the reports in high school 30+ years ago).
